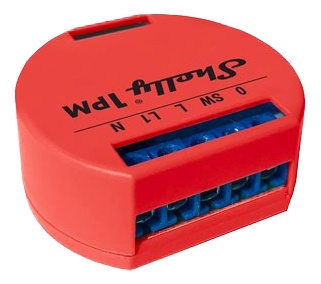

Recessed switch, power measurement, WiFi, Shelly 1PM, red
The smallest and smartest WiFi switch on the market with energy measurement. Control and monitor it from all over the world with your mobile. Open API with support for MQTT, REST / HTTP, Home assistant etc.
Shelly 1PM is a recessed switch with energy measurement for on / off and input for a push-button for direct control. The pushbutton can be of the regular or resilient type.
Place it behind an existing switch so you maintain the function and can also control it with your mobile. Both phase and zero must be extracted.
Open API allows it to be integrated with other systems. It supports MQTT and HTTP REST calls and works well with e.g. SmartThings, Home assistant, Homey.
The device contains an ESP8266 and can be programmed with any Arduino compatible software, such as Tasmota. Programming is done via pins that are accessible without the need to open the device.
NOTE! When programming, the unit must never be connected to 230V.
Specifications
Suitable for small spaces
Power supply: 110-230V, 50 / 60Hz AC or 24-60V DC
1 channel
Max load: 16A
Protection: Switches off automatically at high temperatures
Power measurement
Minimum opening for mounting: Ø = 50mm
Operating temperature: -40 to + 40 ° C
Dimensions (LxWxH): 41 x 36 x 17 mm
Weight: 181 g
Scheduling (time or astrour)
Shelly Cloud (optional) to control and read the device from around the world
Plug and play, easy to install
No gateway needed, connects directly via WiFi
Compatible with Home Assistant, Tellstick (white) or Homey m.m.
Mobile app: Android and iOS
Google Home Support
Alexa support- CE marked
Radio power: 1mW
Wireless / WiFi protocol: 802.11 b / g / n, 2.4GHz
Radio frequency: 2400 - 2500 MHz
Range: up to 50 m outdoors and 30 m indoors
Consumption: <1 W
Embedded web server
Microcomputer: ESP8266 - Arduino compatible
MQTT client, perfect for integrating with controls
HTTP and UDP, control and read the status
CoAP, IoT protocol
mDNS advertising
SNTP to synchronize time
Mongoose OS
