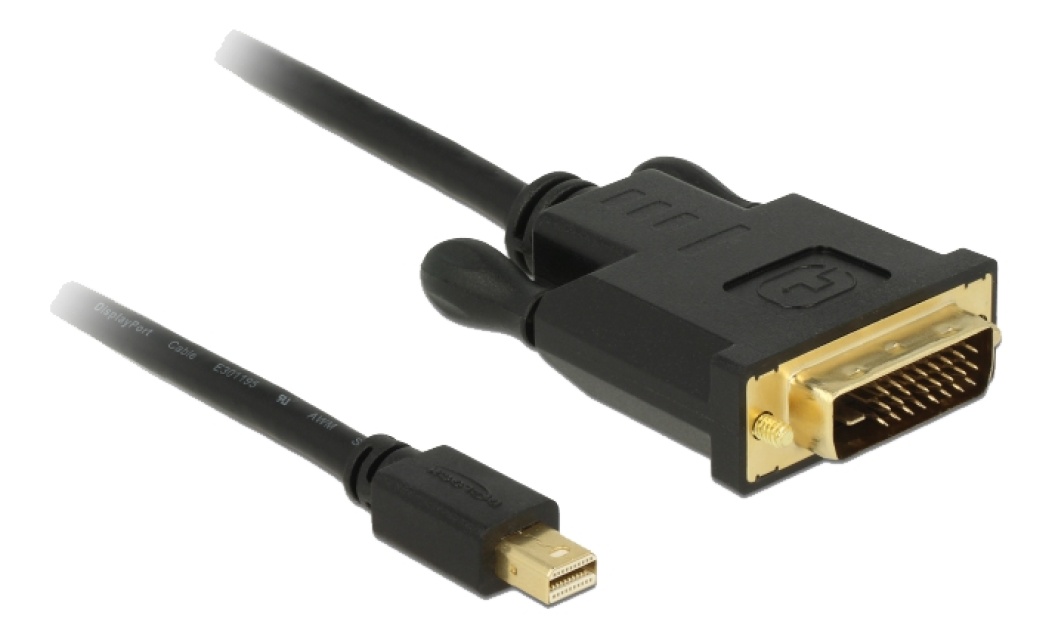

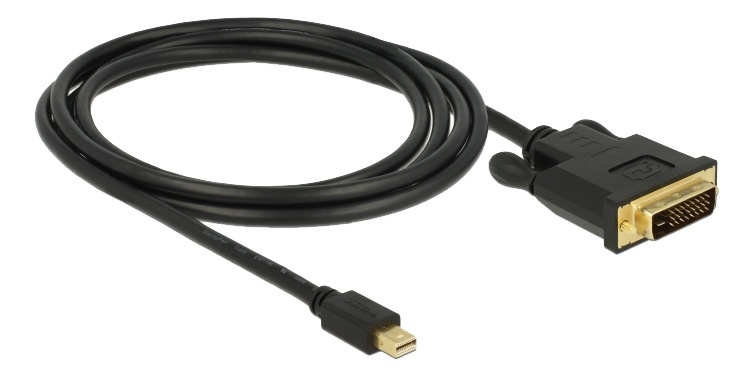

Delock Cable mini DisplayPort 1.1 male > DVI 24+1 male, 2 m, black
This cable by Delock can be used to connect a display with an DVI port to a PC or a laptop with mini DisplayPort interface.
• Connectors:
1 x mini DisplayPort 20 pin male >
1 x DVI 24+1 male with screws
• Chipset: NXP PTN3361
• DVI-D (Single Link), VGA not wired
• DisplayPort 1.1a specification
• Passive cable (level shifter), suitable only for graphics cards with DP++ output
• Signal direction: mini DisplayPort input > DVI output
• Cable gauge: 32 AWG
• Cable diameter: ca. 5.5 mm
• Twisted-pair cabling
• Copper conductor
• Gold-plated connectors
• Triple shielded cable
• Data transfer rate up to 3.96 Gb/s
• Resolution up to 1920 x 1200 @ 60 Hz (depending on the system and the connected
hardware)
Package contents: Mini DisplayPort to DVI cable
